320LM-20

320LM-20

Price on request

Options
320LM-20
320LM-20
320LM-20
320LM-20
320LM-20
  • Load image into Gallery viewer, 320LM-20
  • Load image into Gallery viewer, 320LM-20
  • Load image into Gallery viewer, 320LM-20
  • Load image into Gallery viewer, 320LM-20
  • Load image into Gallery viewer, 320LM-20

Specifications

Optical power (mW): > 20
Center wavelength (nm): 320
Center wavelength tolerance (nm): ± 1
Beam diameter (95% of power, mm): 1
Beam divergence (half angle, mrad): ~0.3
Linear polarization: Yes
M2 : <4
Modulation freq.(kHz): CW only
Peak power consumption: 24V/2.5A

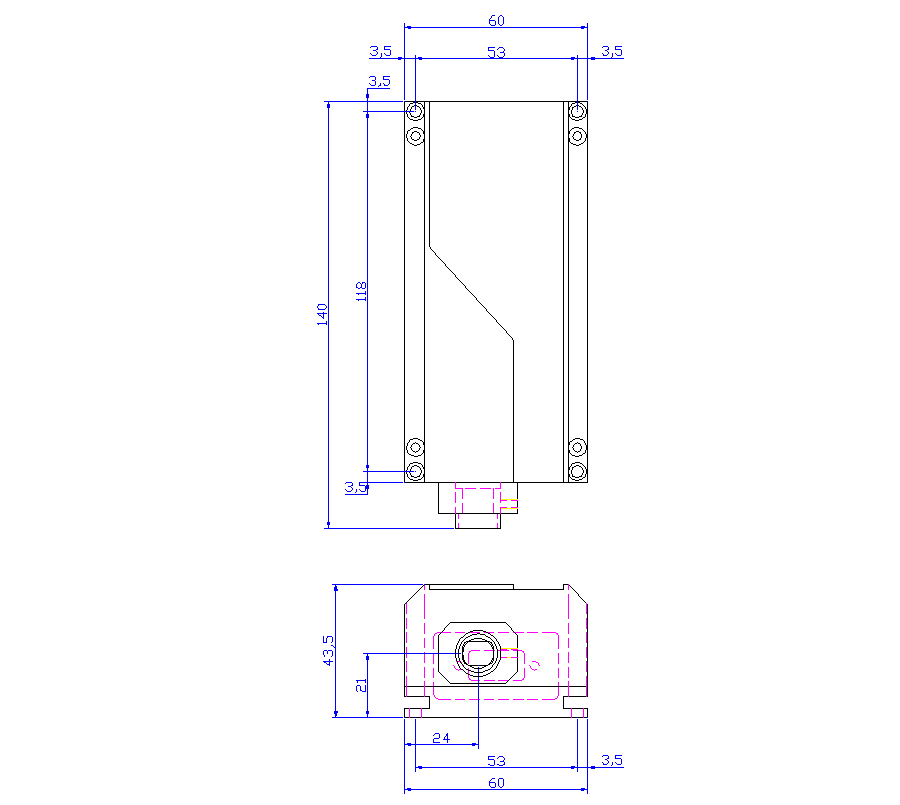

Dimensions (LxWxH,mm): 125x60x44
Driver dimensions (LxWxH,mm): 117x89x34

Options
