RLM-160D

RLM-160D

Price on request

Options

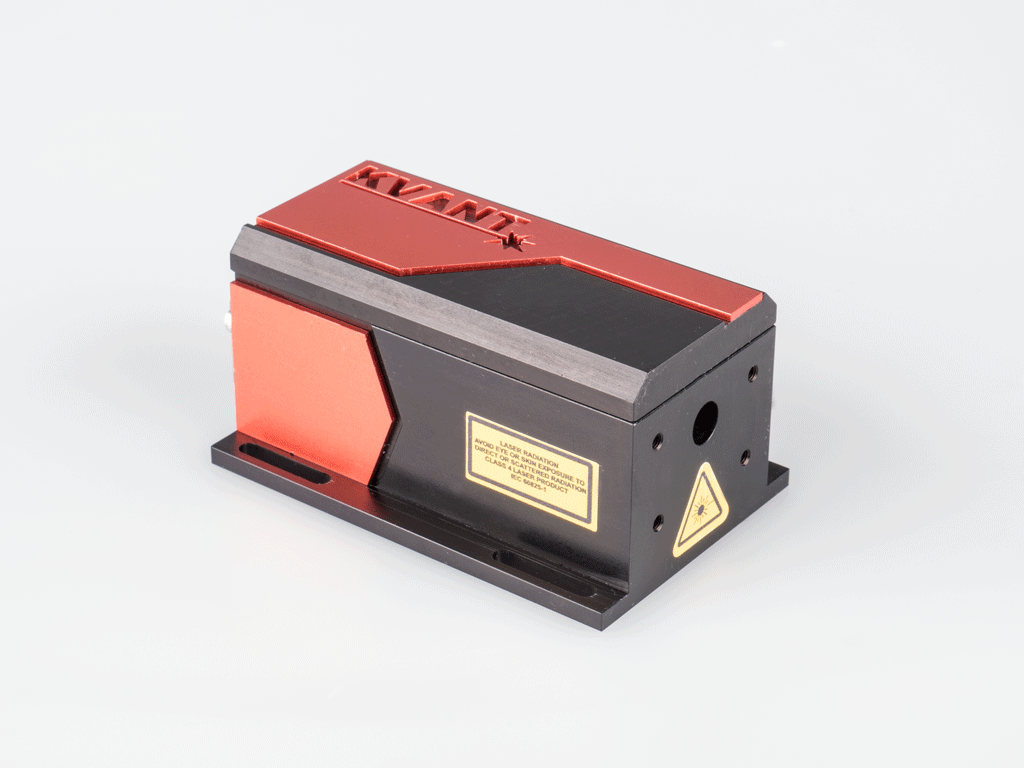

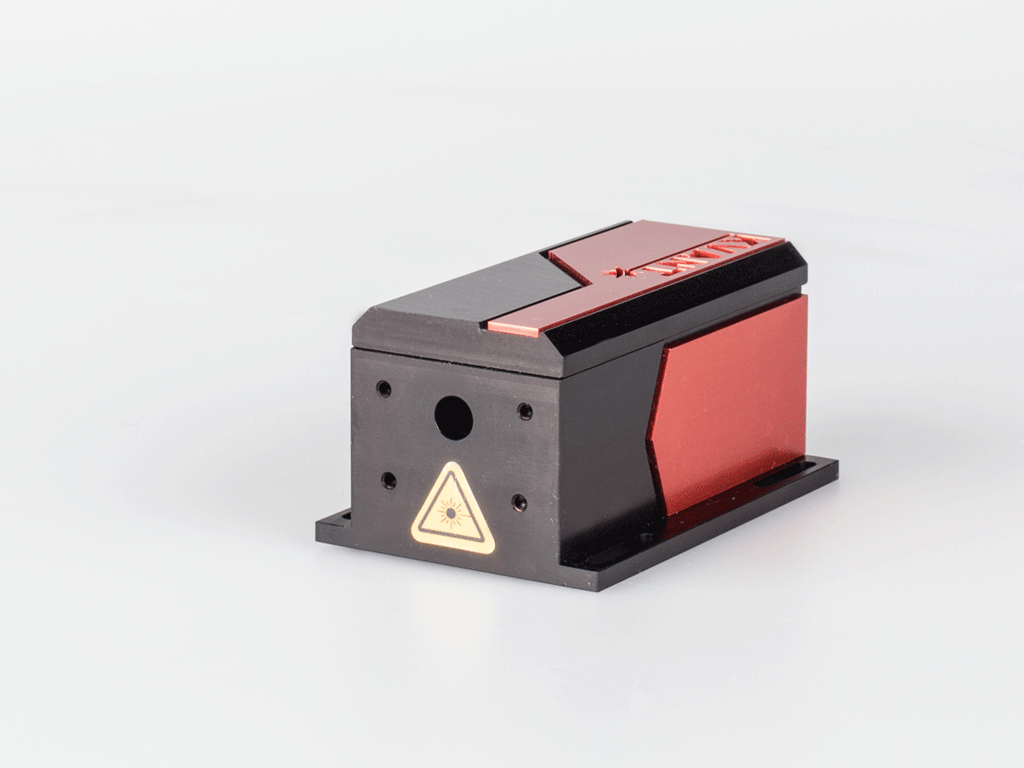

160mW 660nm laser module KVANT
160mW 660nm laser module KVANT
160mW 660nm laser module KVANT
160mW 660nm laser module KVANT
160mW 660nm laser module KVANT
  • Load image into Gallery viewer, 160mW 660nm laser module KVANT
  • Load image into Gallery viewer, 160mW 660nm laser module KVANT
  • Load image into Gallery viewer, 160mW 660nm laser module KVANT
  • Load image into Gallery viewer, 160mW 660nm laser module KVANT
  • Load image into Gallery viewer, 160mW 660nm laser module KVANT

Specifications

Optical power (mW): 160
Center wavelength (nm): 660
Center wavelength tolerance (nm): ± 5
Beam diameter (95% of power, horizontal*vertical, mm): 1.4x3
Beam divergence (half angle, mrad): 0.2
Linear polarization: Y
M2 (horizontal/vertical): 1/2
Modulation freq. (kHz): 100
Peak power consumption TEC circuit: 24V/1.5A
Peak power consumption LD circuit: 24V/0.5A

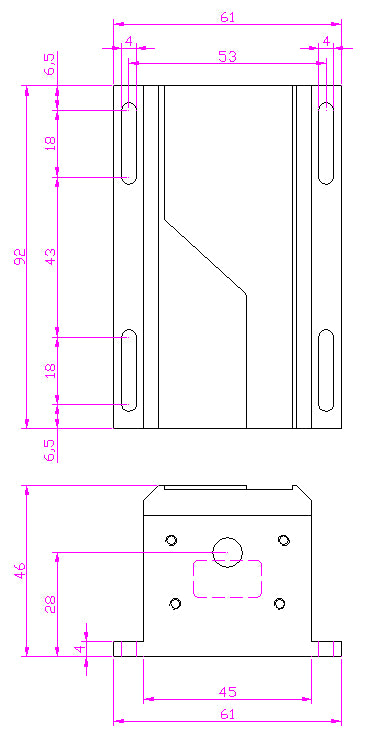

Dimensions (LxWxH,mm): 92x61x46
External driver part dimensions (LxWxH,mm): 117x89x34

Options

To make the most of your modules, see below for additional options.
