RLM-320D
RLM-320D
Price on request
Specifications
| Optical power (mW): | 320 |
| Center wavelength (nm): | 660 |
| Center wavelength tolerance (nm): | ± 5 |
| Beam diameter (95% of power, horizontal*vertical, mm): | 3x3 |
| Beam divergence (half angle, mrad): | 0.2 |
| Linear polarization: | N |
| M2 (horizontal/vertical): | 2/2 |
| Modulation freq. (kHz): | 100 |
| Peak power consumption TEC circuit: | 24V/1.5A |
| Peak power consumption LD circuit: | 24V/0.5A |

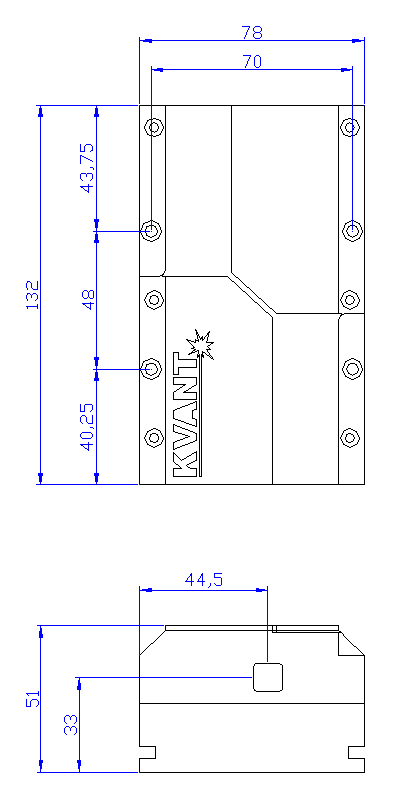

| Dimensions (LxWxH,mm): | 132x78x51 |
| External driver part dimensions (LxWxH,mm): | 117x89x34 |
Downloads
RLM-320D Product Specifications
